Stainless Steel Flanged Capacitor Discharge (CD) Weld Pins

Introduction & Specifications Of Flanged Capacitor Discharge (CD) Weld Pins:

1) Capacitor Discharge weld pins are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.

2) Capacitor Discharge weld pins are available in many different sizes, from a pin diameter of 3mm, 4mm, 5mm etc.

3) Standard material are: Copper Plated Mild Steel, Stainless Steel 304, Aluminum Alloy.

4) Other grades, i.e. AISI 316 (A4), AISI 310 are available on request.

5) The flange is designed according to EN ISO 13918.

6) Various of self locking washers or dome caps are available.

	D	A	B	L	Material
	3mm	4.5-5.3mm	0.9mm	As your requirement	Copper Coated Steel, Stainless Steel, Aluminum Alloy,
	4mm	5.5-6.3mm	0.9mm	As your requirement	Copper Coated Steel, Stainless Steel, Aluminum Alloy,
	5mm	7.5-8.3mm	0.9mm	As your requirement	Copper Coated Steel, Stainless Steel, Aluminum Alloy,

MATERIAL	MILD STEEL	STAINLESS STEEL	ALUMINUM	BRASS
	C - 0.23% max. P - 0.04% max. Mn - 0.90% max. S - 0.05% max.	AISI Grade: 302/304/305 Standard Other grades are available.	Alloy 1100 & 5000 Series Other alloys available upon request	Alloy (lead free) 70 - 30 std. Other alloys available upon request
MECHANICAL PROPERTIES	Tensile- 60,000 psi (min.) Yield - 50,000 psi (min.)	Tensile - 85,000 psi (min.) Yield - 40,000 psi (min.)	Tensile- 42,000 psi (min.) 5000 series Yield - 30,000 psi (min.) 5000 series	Tensile - 70,000 psi (min.) Yield - 50,000 psi (min.)
PLATING	Copper plating is standard	Does not apply to Stainless
ANNEALING	Studs are annealed where required	Studs are annealed where required

Detailed Images Of Flanged Capacitor Discharge (CD) Weld Pins:

Package And Delivery Of Flanged Capacitor Discharge (CD) Weld Pins:

Packing:

1. PP bag + Paper Carton + Wood Pallet

2. As your requirement

Delivery:

Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.

Accessories Of Flanged Capacitor Discharge (CD) Weld Pins:

FAQ Of Huihao Hardware Mesh Product Limited.

1. Do you support product customization?
Yes, we mainly promote customized processing routes

(process customization, material customization, surface treatment customization, etc.).

According to your samples or drawings, our professional designers will draw 3D data models for you and make samples!

2. How can I get samples?
1) Standard products: We provide free samples under 5 dollars.
2) Custom products: We charge 1-3 times the unit price (based on product specifications).

3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping.

4)Samples will be sent as soon as payment is received.

3. How do you control and ensure product quality?
We will prevent beforehand, manage during the event, and guarantee after the event.

1) Confirm with you every details before quoting.

2) After you order, we will reconfirm all the details again.
3) We strictly implement the "IATF 16949 Quality Management System" standard in production.

4) We will send you videos and pictures during the production and shipment process.

stud welding pins

stainless steel flanged stud welding pins

capacitor discharge weld pins

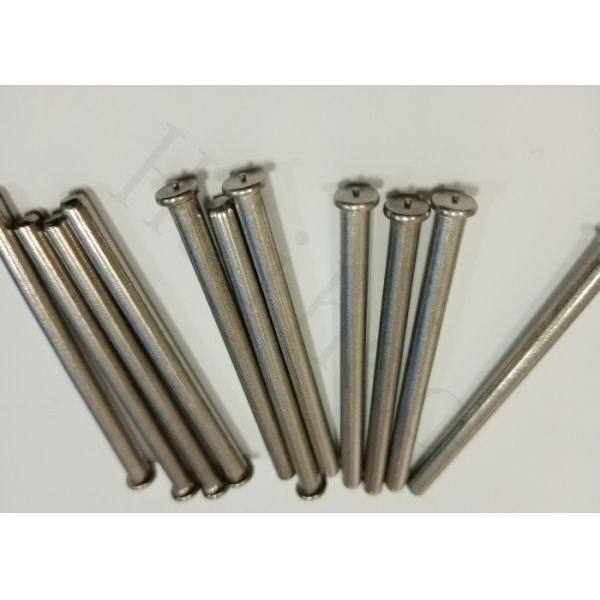

Stainless Steel Flanged Capacitor Discharge CD Weld Pins 3mm Diameter Images
